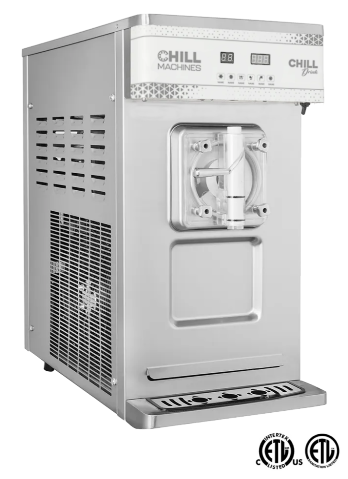

Chill Frozen Drink Machine by National Equipment

Upgrade your drink offerings with the versatile FC16 Single Flavor Frozen Beverage Machine Model FC16. Perfect for milkshakes, smoothies, slushies, frozen cocktails, acai drinks, and more, this machine is designed to boost sales and enhance your menu.

Key Features:

• High Production Capacity: Produces up to 64 quarts (16 gallons) per hour, serving up to 250x 8oz servings per hour.
• Efficient Batch Production: Capable of producing up to 4x 8oz servings in a minute.
• Freezing Cylinder: One 6.9-liter (7.3 quart) cylinder.
• Mix Hopper: One 11.6 quart (11 liters) hopper with agitator.
• Durable Construction: All washable parts are made from high-quality injection molded plastic or stainless steel. Complete stainless-steel body ensures durability and easy cleaning.
• See-through Dispenser: Allows easy monitoring of the drink mix.
• Air Cooled: Ensures efficient operation.
• Powerful Beater Motor: 1.5 HP beater motor for smooth operation.
• Efficient Compressor: 5,000 BTU/hr. compressor.
• Digital Control Panel: Provides easy operation, adjustments, and visibility into the unit's operation.
• Operational Modes: Serve, Standby, Cleaning modes for versatile use.
• Digital Texture Control: Adjust the texture of your frozen drinks to perfection.
• Low Mix Indicator: Alerts operator to add mix when running low.
• Refrigerated Hoppers: Maintain mix below 40°F (4.4°C) during Serve and Standby modes.
• Standby Feature: Maintains safe product temperatures during long no-use periods.

Clearance Requirements:

• Left: 6” (150mm)
• Right: 6” (150mm)
• Back: 0” (0mm)
• Bottom: 2.5” (64mm)

Important: Do not cover side vents of the machine. Adequate spacing is required for proper ventilation to prevent damage to the condenser, compressor, and other components, which could void the warranty. The machine must be installed on a level surface.

Electrical Requirements:

• Voltage: 220V
• Phase: Single
• Watts: 2,400
• Amps: 11A
• Plug: NEMA 6-20
• AWG: 12
• Energy Consumption: 2.4 kW/hr
• Dedicated Circuit Required

Dimensions and Weight:

• Machine Dimensions (LxDxH): 15.1" x 29.8" x 29.7" (384mm x 756mm x 755mm)
• Machine Weight: 198 lbs. (90kg)
• Shipping Dimensions: 18.7" x 33.3" x 36.8" (474mm x 846mm x 935mm)
• Shipping Weight: 242.5 lbs. (110kg)
• Shipping Class: 70
