The FS-60 hydraulic juice press is our most powerful commercial cold juicing press available before you enter the industrial series of the FS equipment. It is great for a 1 to 2 man juicing operation and produces up to 100 gallons of juice per hour. Two press zones and a movable shredder (see FS-60 Dual Press video) act together to greatly increase juice production. The FS-60 model produces as much juice as competing 6 layer presses. The FS-60 can handle any vegetable, fruit, leafy green, grass, herb and nut with a yield up to 86% of the weight of the product pressed. The FS-60 press has all the necessary certifications to make any health department happy and is perfect for commercial kitchens, commissaries, juice bottling plants, cider production, and high-volume juicing operations.
Commissioned by juicing industry specialists who understand the needs of a modern juicing consumer, the FS-60 cold press has many unique features:
- Wash down design allowing spraying of the whole machine while cleaning.
- Electropolished surface providing an easy-to-clean coating.

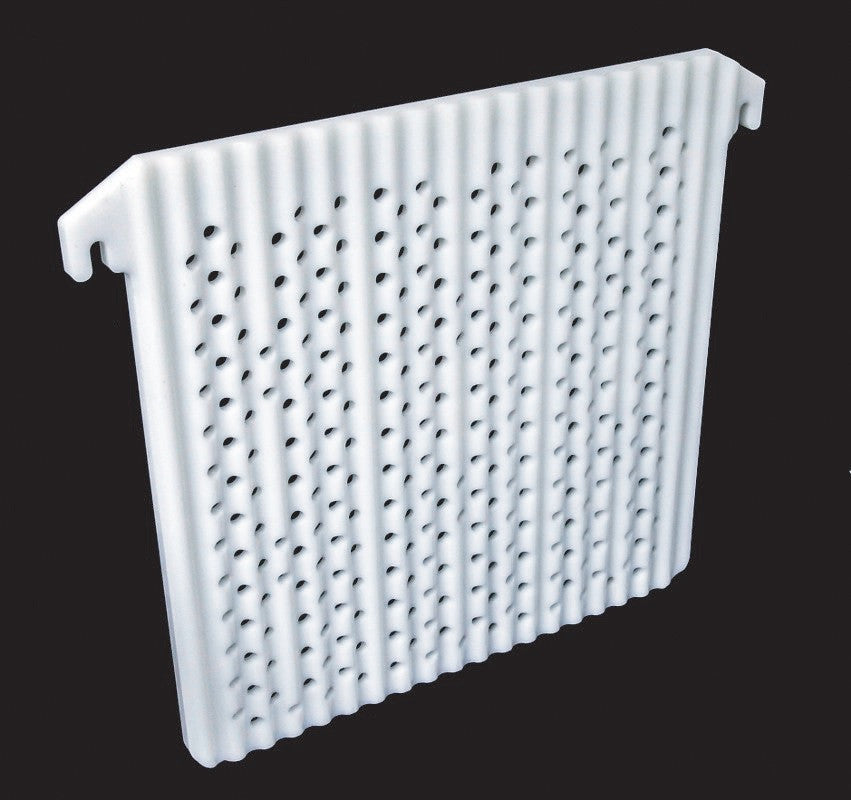

- Wavy pressing plates ensuring better distribution of the applied force on the product in the bag from top to bottom instead of side to side avoiding bag “bursts” and producing higher yield.
- 2 emergency stop buttons – on both sides of the press.
- 2 sets of over-sized pressing platens 20 x 20 in.
- Welded easy-to-clean seams as opposed to “bolt together” construction methods that create crevices and require silicone sealants a subject to wear and tears.
The FS-60 is extremely robust and powerful with the force of 14,000 lbs applied in each squeeze versus 4,000 offered by its competitors. You can imagine the difference in yield. The juice produced contains less than 1% solids, so no extra filtering is necessary.
As on our FS-20 PLUS and FS-30 PLUS models, the shredder on the FS-60 is equipped with an additional bearing as well as the 11 lb disc plate ensuring the stability of the shredder and the minimal load on the motor. The FS-60 swiveling shredder is located between the two sets of pressing platens and could be used with either one at any point. The shredder and press controls are located on the common control panel for easy operation.
The FS-60, as well as all FS cold presses were designed to keep the operator safe. The FS-60 grinder has a safety interlock. The grinder can not operate without the feeding tube in place. The FS presses also have safety guards, 2 emergency stops, circuit protection on all the motors, wet environment plug and cord, and main electrical disconnect. These are some of our advvantages over the competition.
The FS-60 and other FS press models is NSF compliant, INTERTEK approved and made in the USA. The units can be manufactured in both 110V and 220V.
APPLICATIONS:
- High volume juice bars
- Large juice cleanse operations
- Produce markets
- Supermarkets
- Bottling facilities

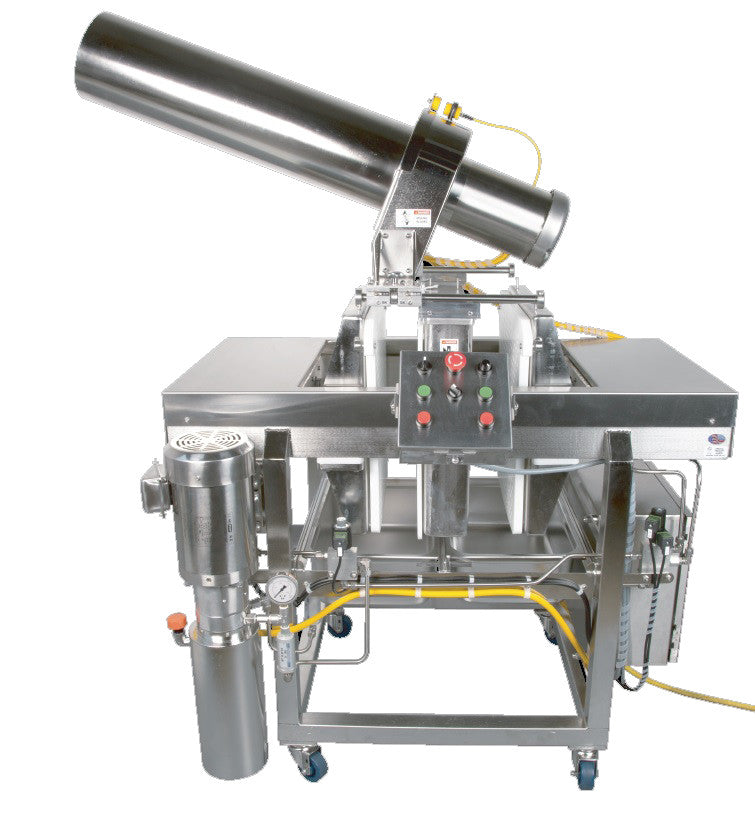

FS-60 Press
Output: up to 100 Gal/hr
Force: 14000 lbs x 2
3 Gal oil reservoir
Power: 20 Amp, 220 Volt, single phase; 3HP motor
Net Weight: 785 lbs
Dimensions: 50" x 37" x 72"
Emergency stop buttons on both sides
L6-20P Plug and Cord
1 cord for both press and grinder
Designed for wet environments
Smallest footprint for up to 40 Gal/hr production
Built-In Grinder
9" German-made grinding scale
0 - 3600 RPM
Simple speed control
Safety interlock on grinder tube
100% sanitary wash-down construction

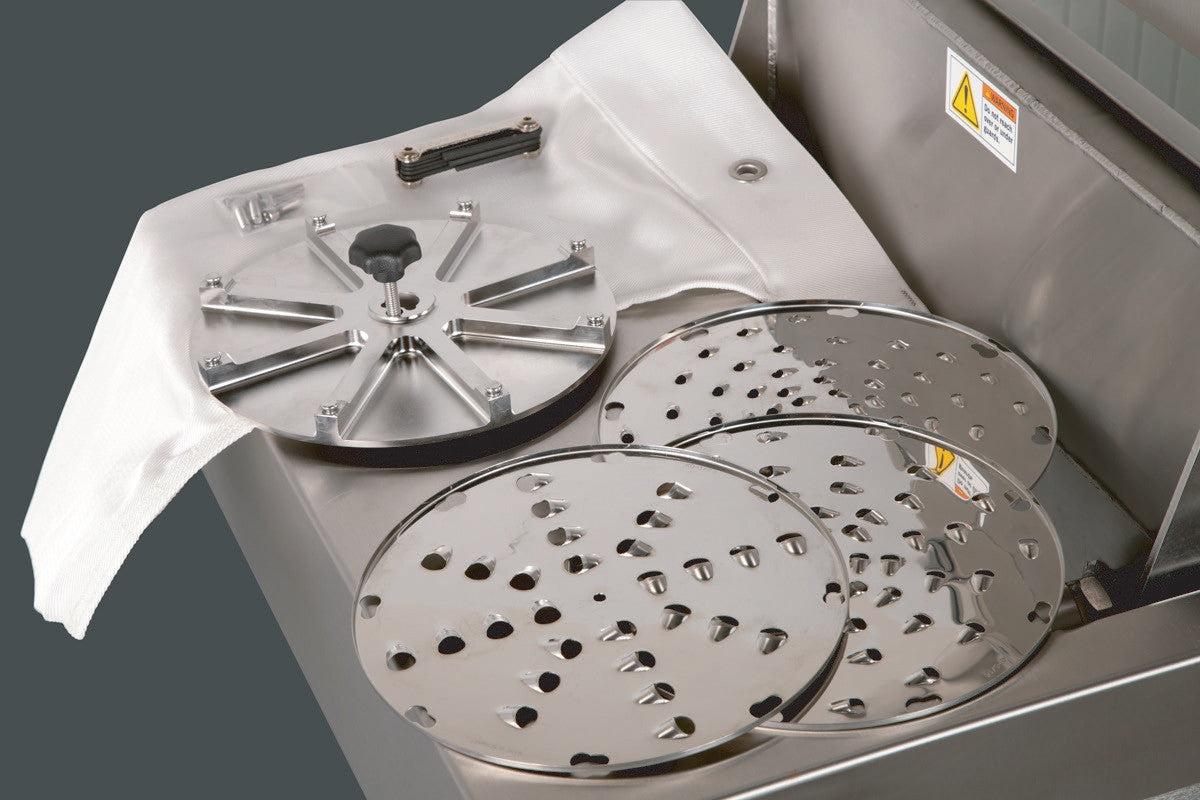

Comes with 3 blades
Extra bearing
Common control panel for shredder and press
